All these equipment has been installed

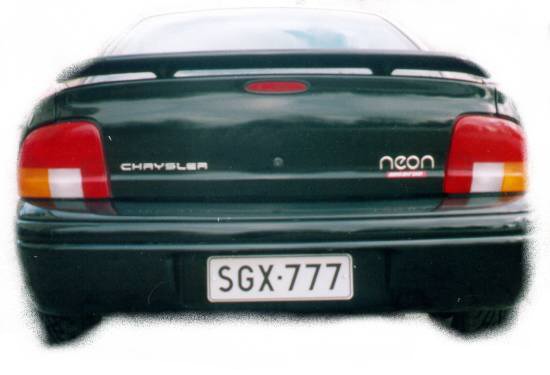

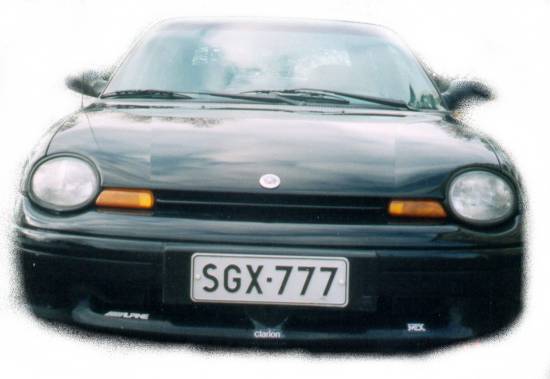

in 1997 Chrysler Neon LE.

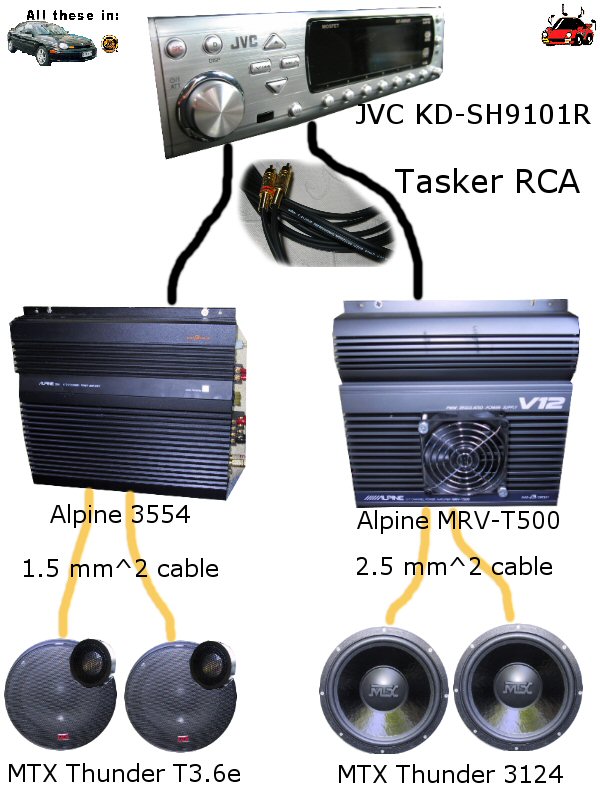

Bigger equipment chart here
Previous
Clarion based system here
Favorite music in the car: |
1. |
Dire Straits |
2. |
Mark Knopfler |
3. |
Trance |
4. |
Rock |
5. |
Pop |
|
Here
is some information about the equipment installed:
|
JVC KD-SH9101
MP3/CD/tuner
- motorized frontpanel
with 4 different tilt
angles
- MP3 & WMA support

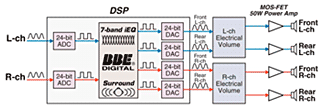

- DSP
- 7-band EQ
- 4v lineouts for front,
rear and subwoofer
- subwoofer lowpass
filter
- Adjustable Line Input
|
|
Alpine V12
MRV-T500 amplifier
- 2*100w / 1*300w RMS
12V
- highpass and lowpass
filters
- BBE
- Mosfet
- Installed on a rack
in the trunk
|
MTX Thunder
T3.6e component speakers
- 6 1/4" midbass
element
- 1" Seas
Tweeter (orig.
3/4" MTX)
- 4 ohm impedance
- Midbass
element are
installed
in front
doors' factory
places (little
modified)
- Tweeters
are on dashboard
|
Alpine 3554
amplifier
- 4*50w / 2*120w RMS
12V
- highpass and lowpass
filters
- BBE
- Installed on a rack
in the trunk
|
MTX Thunder
T3124 Sub Woofer
- 12" element
- 4 ohm impedance
- power handling
RMS 200W
- fs 30 hz
- vas 91l
- Qts 0.53
- xmax 9.4mm
- installed
in 28 liter
closed enclosure
each (F3
50hz, qtc
1.13)
|
|
|
